MULTI-AXIS CNC WIRE BENDING MACHINE

MULTI-AXIS CNC WIRE BENDING MACHINE

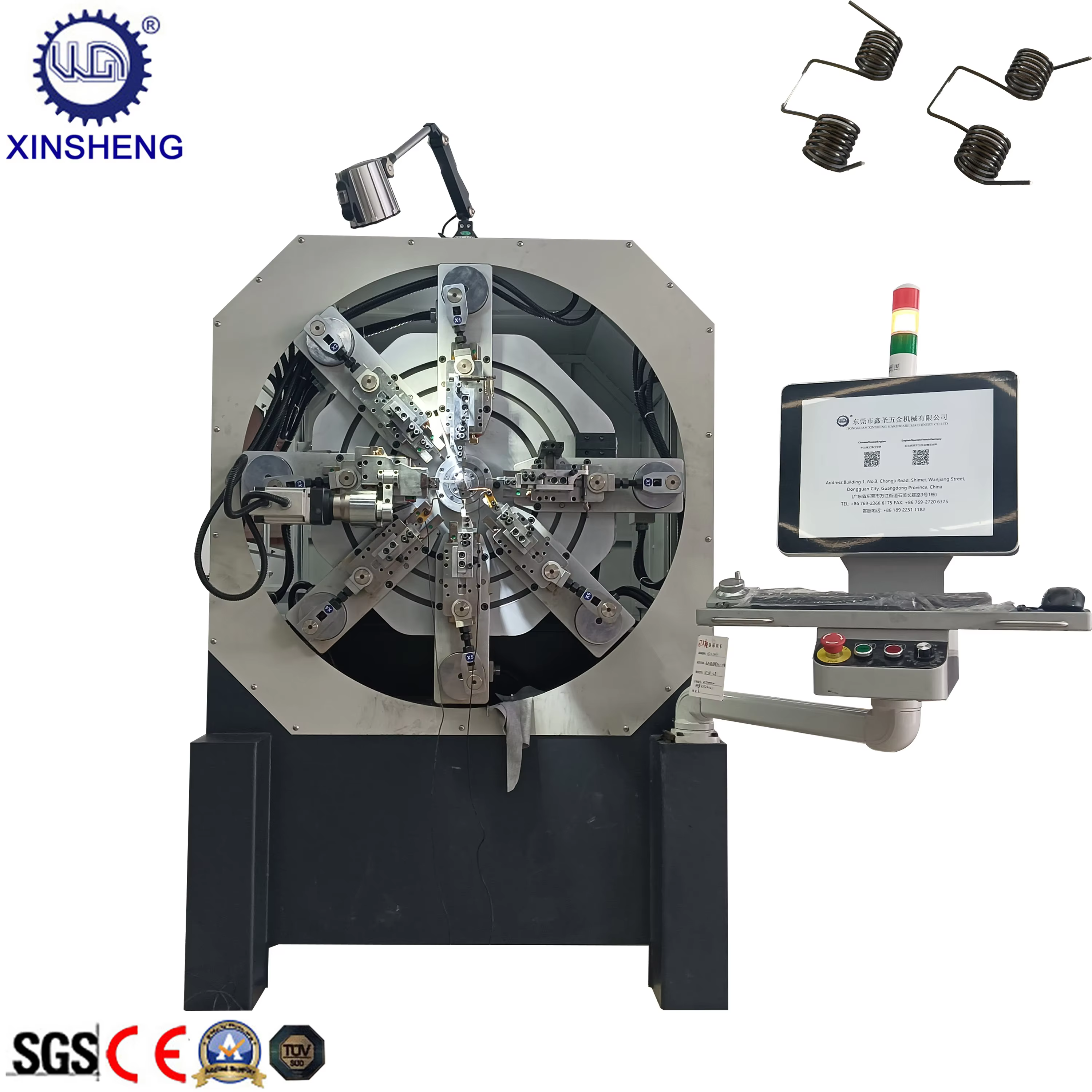

Versatile Automatic Max 2.8mm Wire Camless 3 Dimension CNC 12-Axis Spring Making Bending Machine

12-axis machine with wire rotation, Panasonic Servo, Arcuchi CNC, Hiwin guide, Roster reducer, durable tungsten mandrel, CE certified.12-axis machine with wire rotation; adjustable axes. Features: Panasonic Servo, Arcuchi CNC, Hiwin rails, Roster reducer, tungsten mandrel. CE certified.

  • Overview
  • Recommended Products

Product Description

product versatile automatic max 28mm wire camless 3 dimension cnc 12 axis spring making bending machine-0

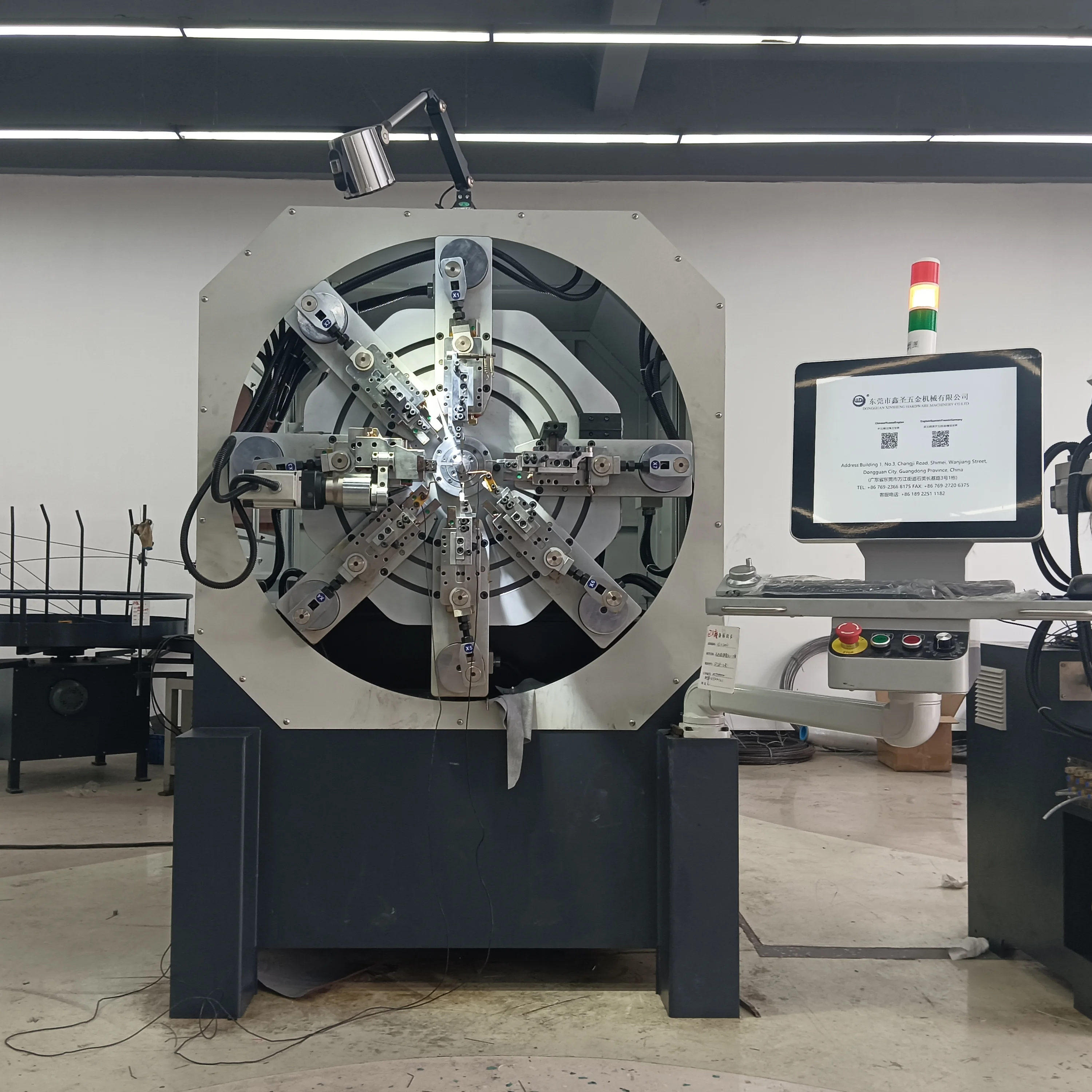

This machine has 12 axis with wire rotating function. It can be used to produce very complicated products  or springs of with wire. Based on product complexity, axis quantity can be reduced to lower cost. Below is configuration info:

1)Servo motor: Panasonic

2)CNC System: Arcuchi

3)Linear guide rail & slider: Hiwin

4)Reducer motor: Roster

5)Cutter: High speed steel

6)Tungsten steel is embed to end of bending mandrel to ensure druable usage

7)CE certified electrical parts and components



Technical Paramter

Model GT28-12R
Wire dia bendable (mm) Hard:0.4-2.8
Soft:0.5-4.0
Max. wire feeding value (mm) 10000
Min. wire feeding value (mm) 0.01
Max. wire feeding speed 120m/minute
Max. wire feeding length Unlimited
Axis quantity 12
Total output power of servo motors 13.3KW
Program storage (plus) 3000
Compressor air pressure(kg/cm) 5-6kg/cm²
Probe quantity 3

Packaging & Shipping

Pack 1A

Poly wood case packing, we can deliver out product by rail way or by sea.



Our Services

1. Recommend correct equiipment to customer for standard products.

2. Design and produce non-standard equipments based on buyer's unique requirement.

3. We provide detailed video setup to guid the installment for obroad buyers, can also send engineer to settle problems on site.



Company Information

Dongguan Xinsheng Hardware Machinery Co.,Ltd,wasestablished in March,2009. We are concentrating on manufacturing wire bending machinery . Our product includes: CNC bending machine, Hydraulic CNC bending machine, Mechanical bending machine.With over 14 years of experience and profound know-hows, we can provide various wire bending solutions to customers all over the world.




Trade Show

_07


FAQ

1.Can we customed bending equipment with welding function?

Yes, you can. We have been providing tailored serive since 2009.

2. Which brand of main parts do you use?

We adopt branded main parts. Such Pasasonic's servo motor, Delta's frequency converter, Ashun's hidraulic cylinder.

3. How do you guide the installation for broad customers?

We provide detailed video setting up guide to buyer via online video and USB drive shipped with equipment, which has been proven to be very effective. On site instruction is also available, but it need extra payment.

4. How is your quality guarantee?

1 year for main parts such as motor, control system, but not for easy worn products such as knife. Our machine always can be used for 10 years at least.
