MULTI-AXIS CNC WIRE BENDING MACHINE

MULTI-AXIS CNC WIRE BENDING MACHINE

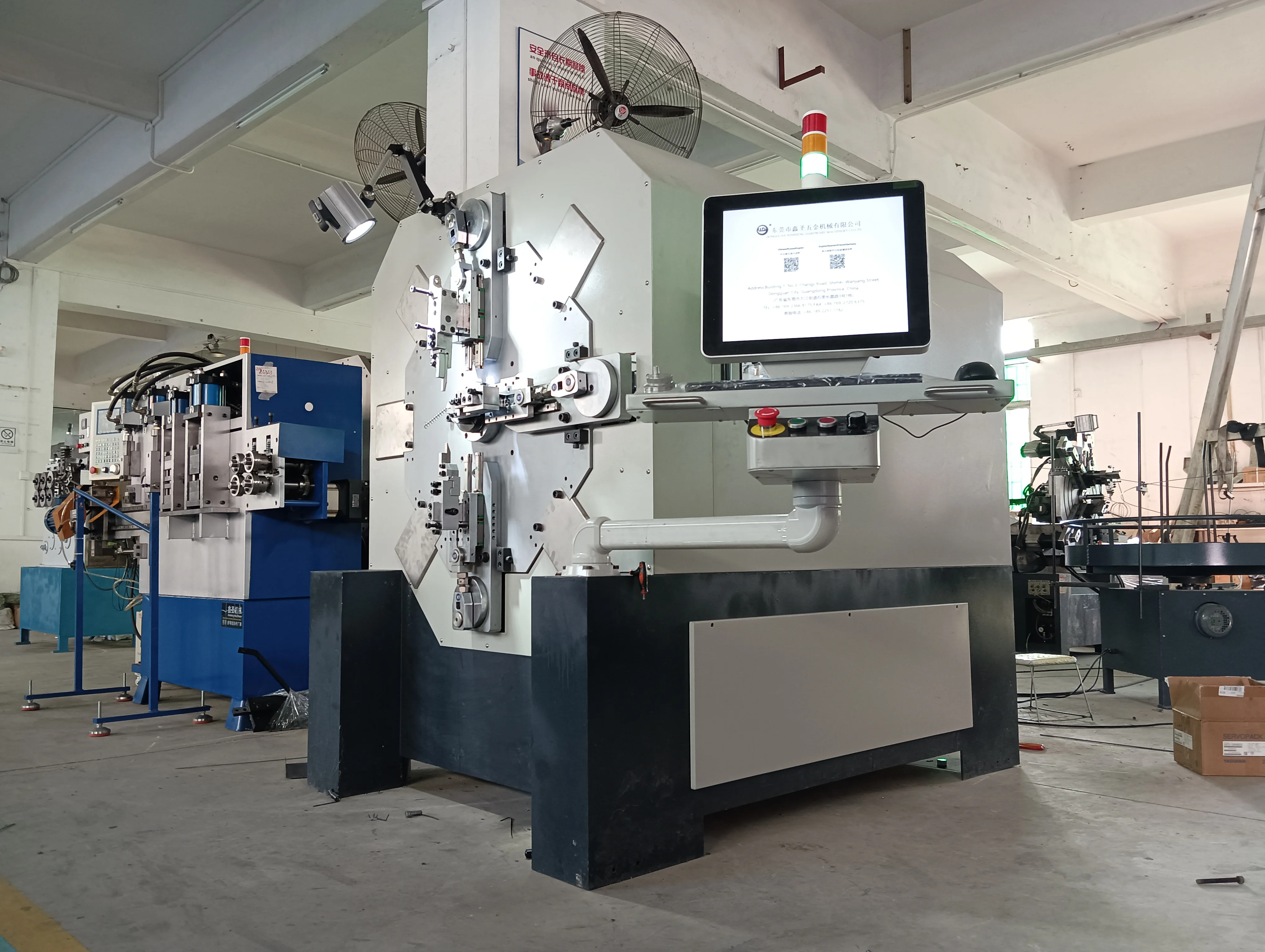

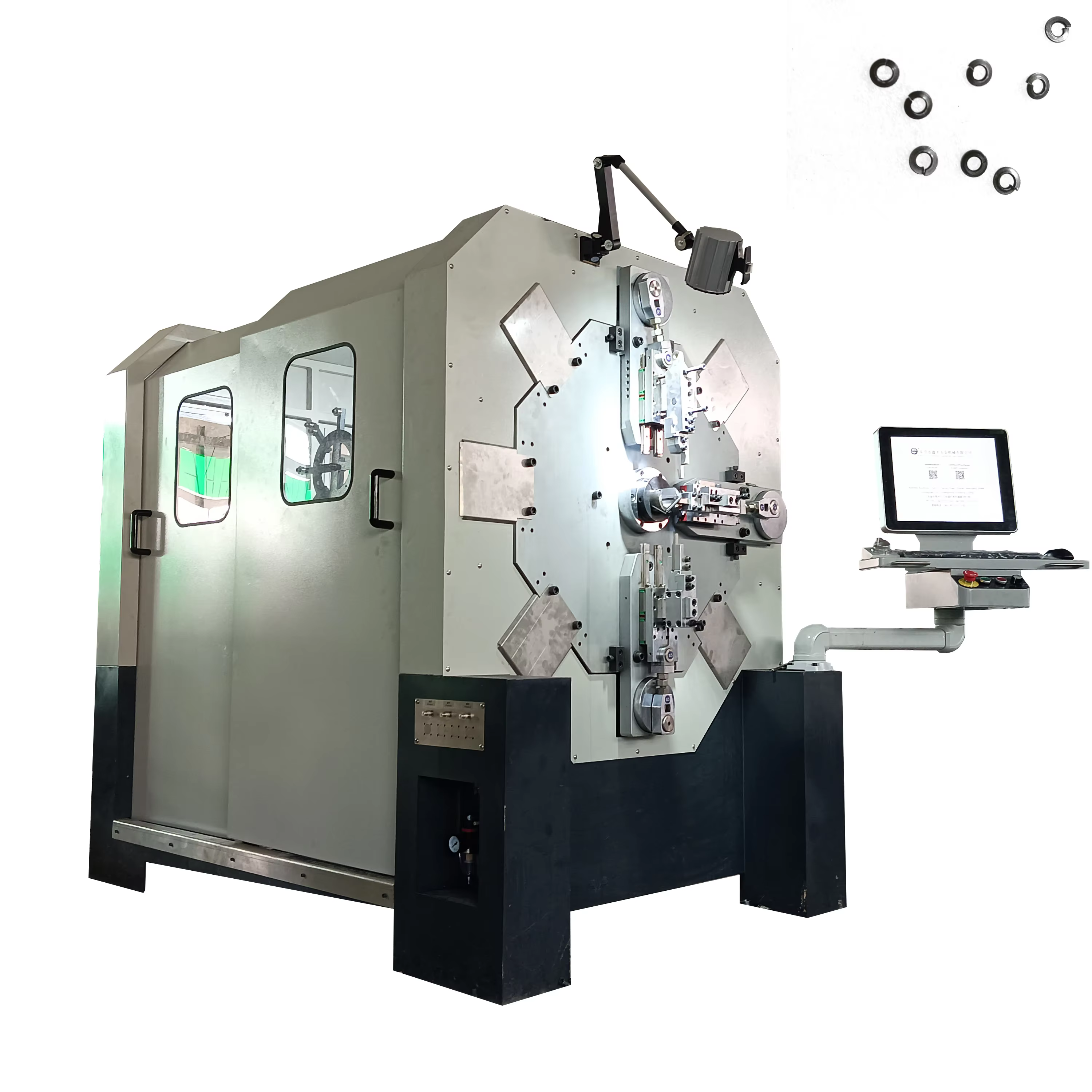

Versatile Automatic 3.5mm Wire Camless 3 Dimension CNC Multi-Axis Bending Machine for New Energy Industry

8-axis machine for 3D wire products; expandable to 12. Features: Panasonic Servo, Arcuchi CNC, Hiwin rails, Roster reducer, tungsten mandrel, CE certified.

  • Overview
  • Recommended Products

Product Description



product versatile automatic 35mm wire camless 3 dimension cnc multi axis bending machine for new energy industry-0

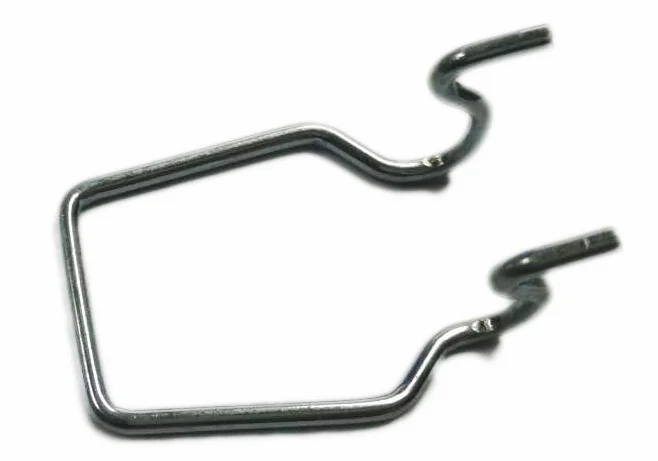

This machine can produce various 3D products of wire. This designed is 8 axis for simple spring production, so we reduce the axis quantity to lower cost. It can be 12 axis at max. Below is configuration info:

1)Servo motor: Panasonic

2)CNC System: Arcuchi

3)Linear guide rail & slider: Hiwin

4)Reducer motor: Roster

5)Cutter: High speed steel

6)Tungsten steel is embed to end of bending mandrel to ensure druable usage

7)CE certified electrical parts and components



Technical Paramter



Model GT35-8R
Wire dia bendable (mm) Hard:0.8-3.5
Soft:2.0-5.0
Max. wire feeding value (mm) 10000
Min. wire feeding value (mm) 0.01
Max. wire feeding speed 80/minute
Max. wire feeding length Unlimited
Axis quantity 8
Total output power of servo motors 18W
Program storage (plus) 3000
Compressor air pressure(kg/cm) 5-6kg/cm²
Probe quantity 3



Packaging & Shipping


Pack 1A



Poly wood case packing, we can deliver out product by rail way or by sea.



Our Services

1. Recommend correct equiipment to customer for standard products.

2. Design and produce non-standard equipments based on buyer's unique requirement.

3. We provide detailed video setup to guid the installment for obroad buyers, can also send engineer to settle problems on site.



Company Information

Dongguan Xinsheng Hardware Machinery Co.,Ltd,wasestablished in March,2009. We are concentrating on manufacturing wire bending machinery . Our product includes: CNC bending machine, Hydraulic CNC bending machine, Mechanical bending machine.With over 14 years of experience and profound know-hows, we can provide various wire bending solutions to customers all over the world.




Trade Show

_07


FAQ

1.Can we customed bending equipment with welding function?

Yes, you can. We have been providing tailored serive since 2009.

2. Which brand of main parts do you use?

We adopt branded main parts. Such Pasasonic's servo motor, Delta's frequency converter, Ashun's hidraulic cylinder.

3. How do you guide the installation for broad customers?

We provide detailed video setting up guide to buyer via online video and USB drive shipped with equipment, which has been proven to be very effective. On site instruction is also available, but it need extra payment.

4. How is your quality guarantee?

1 year for main parts such as motor, control system, but not for easy worn products such as knife. Our machine always can be used for 10 years at least.
