CNC SPRING COILING MACHINE

CNC SPRING COILING MACHINE

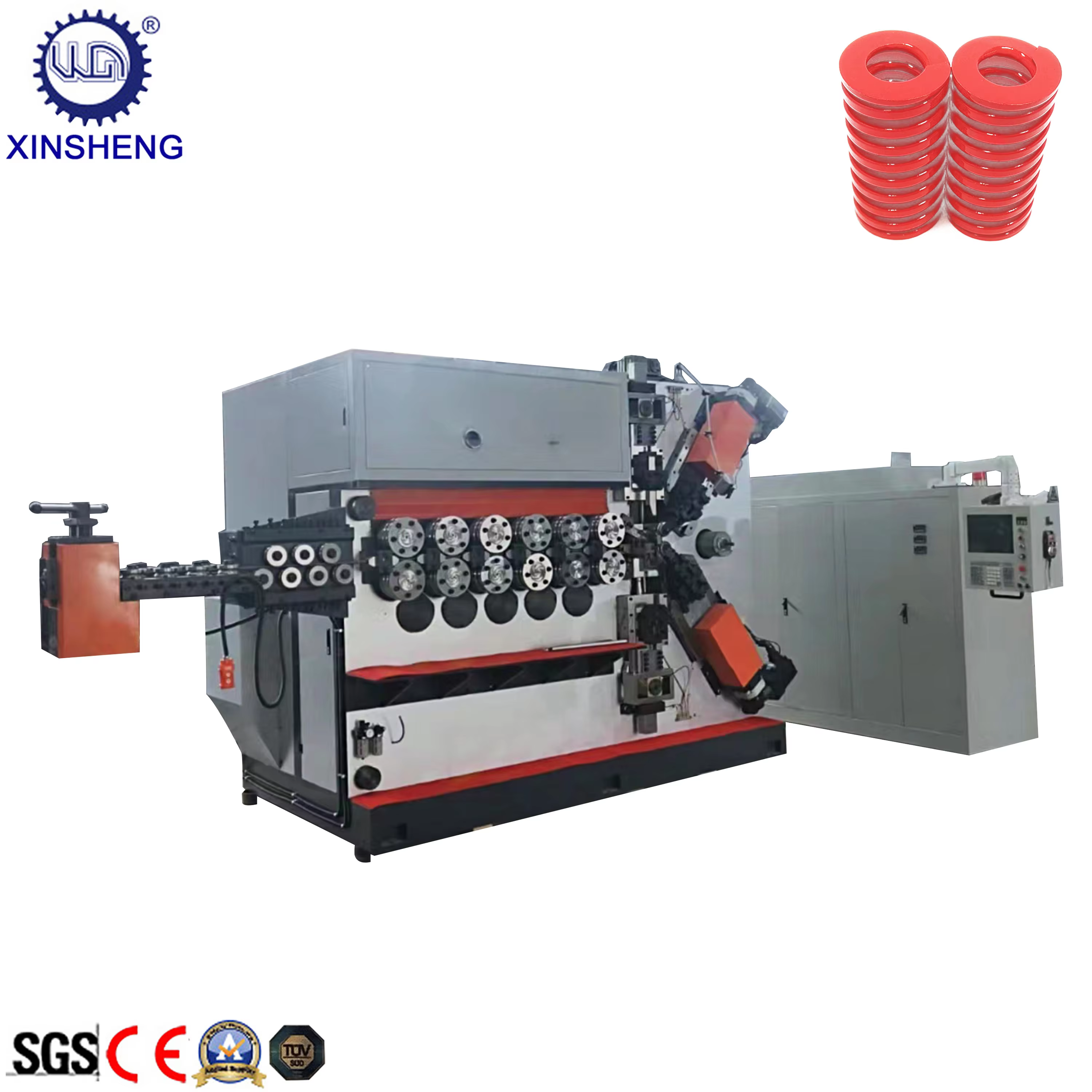

Customized Big Power Automatic 20mm Wire CNC Spring Coiling Making Machine

High-power CNC spring coiling machine: Panasonic Servo, Arcuchi CNC, Hiwin rails, Roster reducer, tungsten mandrel, high-speed steel cutter, CE certified.

  • Overview
  • Recommended Products

Product Description

product customized big power automatic 20mm wire cnc spring coiling making machine-0

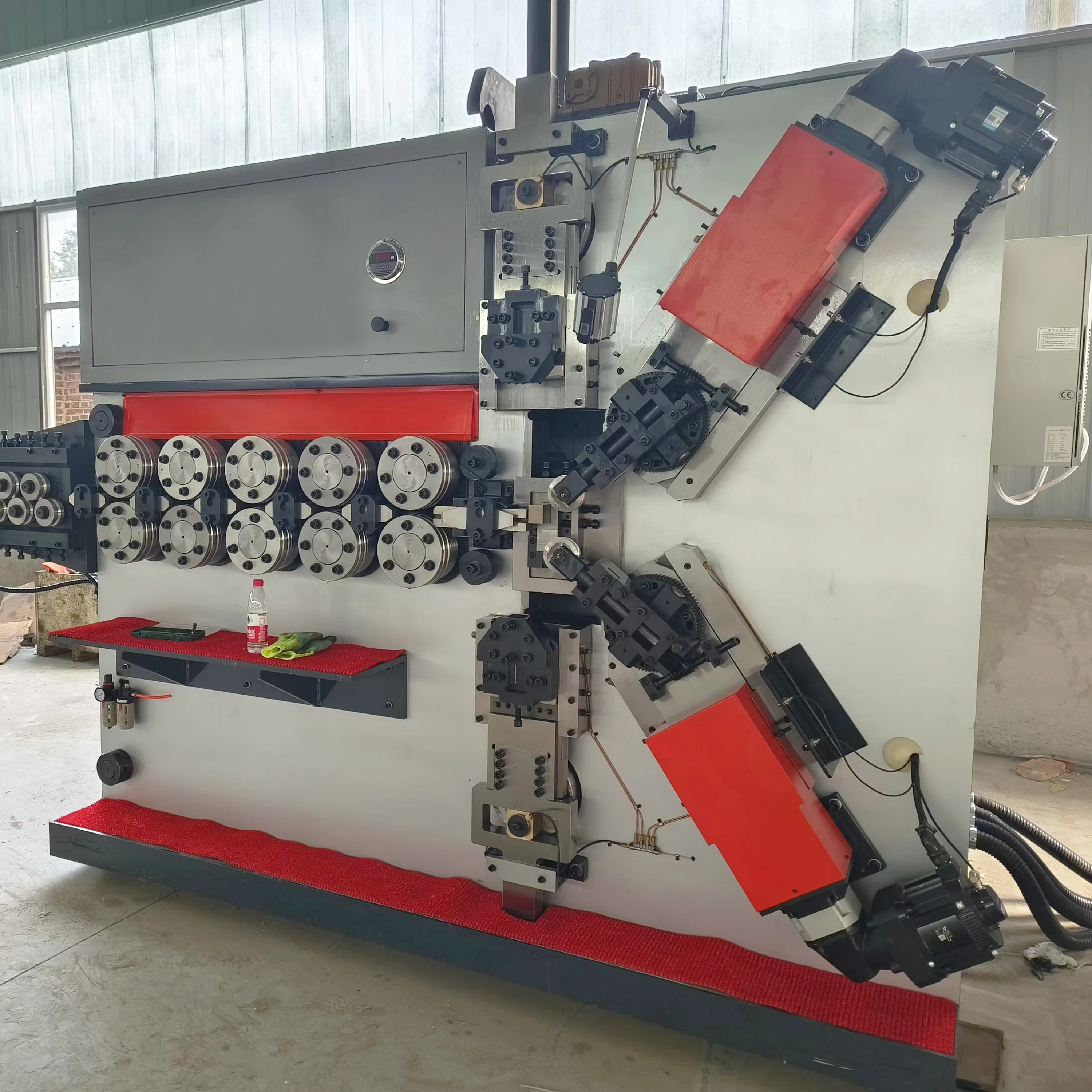

This CNC spring coiling machine features high big-power and stable quality. Main configuration info is as per below:

1)Servo motor: Panasonic

2)CNC System: Arcuchi

3)Linear guide rail & slider: Hiwin

4)Reducer motor: Roster

5)Cutter: High speed steel

6)Tungsten steel is embed to end of bending mandrel to ensure druable usage

7)CE certified electrical parts and components



Technical Paramter

Model CNC-XS-6200
Wire size(mm) 8.0-20.0
Max. outer dia. 260mm
Axis quantity 6
Wire feed speed 10-100M/min
Power of wire feed Servo Motor 55kw
Power of cam servo motor 5.5kw
Power of pitch(Quill) motor 4.4kw
Power of top cut motor 22kw
Power of bottom cut motor 22kw
Outside servo motor 5.5kw

Packaging & Shipping

Pack 1A

Poly wood case packing, we can deliver out product by rail way or by sea.



Our Services

1. Recommend correct equiipment to customer for standard products.

2. Design and produce non-standard equipments based on buyer's unique requirement.

3. We provide detailed video setup to guid the installment for obroad buyers, can also send engineer to settle problems on site.



Company Information

Dongguan Xinsheng Hardware Machinery Co.,Ltd,wasestablished in March,2009. We are concentrating on manufacturing wire bending machinery . Our product includes: CNC bending machine, Hydraulic CNC bending machine, Mechanical bending machine.With over 14 years of experience and profound know-hows, we can provide various wire bending solutions to customers all over the world.


Trade Show

_07


FAQ

1. Can we customed bending equipment with welding function?

Yes, you can. We have been providing tailored serive since 2009.

2. Which brand of main parts do you use?

We adopt branded main parts. Such Pasasonic's servo motor, Delta's frequency converter, Ashun's hidraulic cylinder.

3. How do you guide the installation for broad customers?

We provide detailed video setting up guide to buyer via online video and USB drive shipped with equipment, which has been proven to be very effective. On site instruction is also available, but it need extra payment.

4. How is your quality guarantee?

1 year for main parts such as motor, control system, but not for easy worn products such as knife. Our machine always can be used for 10 years at least.
