MULTI-AXIS CNC WIRE BENDING MACHINE

MULTI-AXIS CNC WIRE BENDING MACHINE

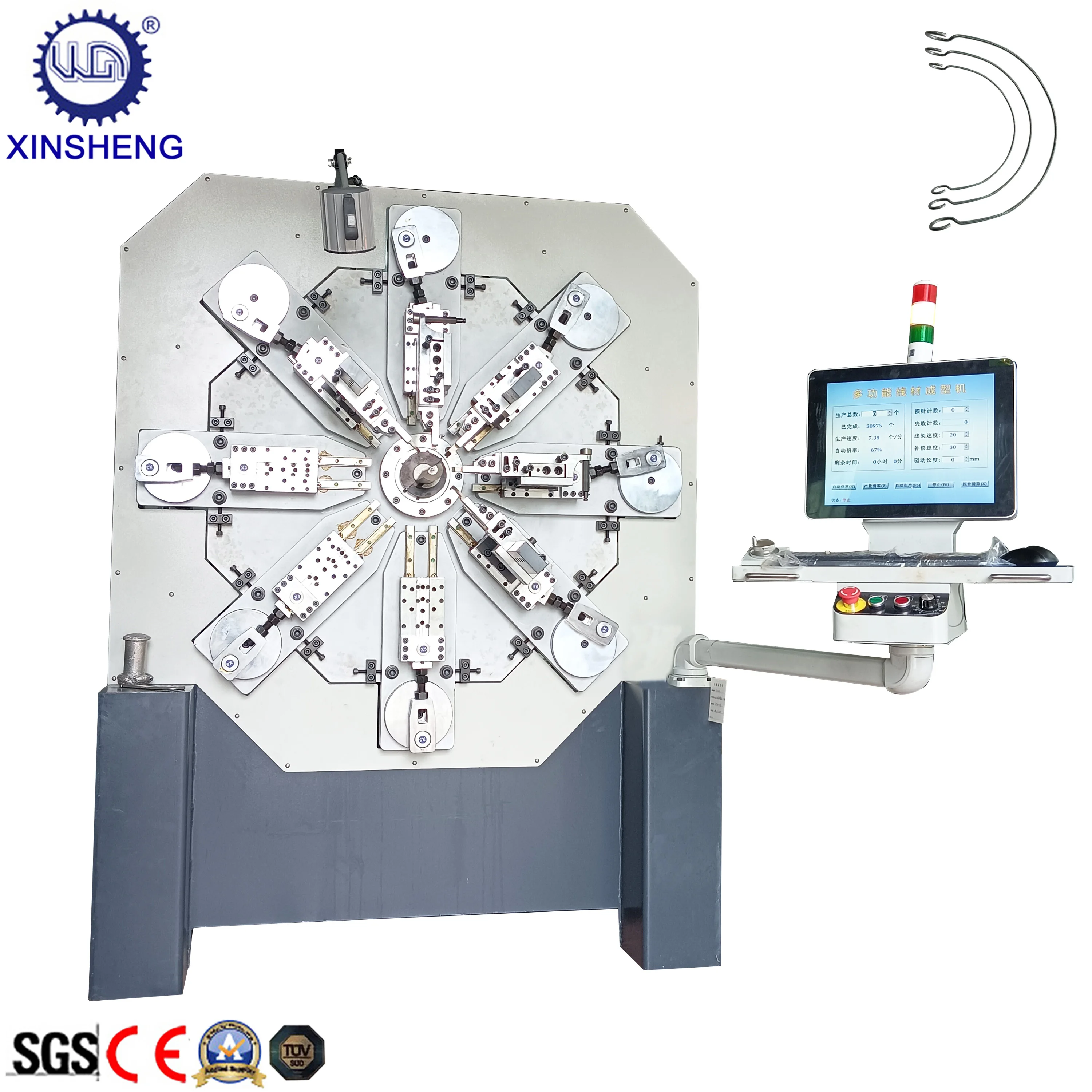

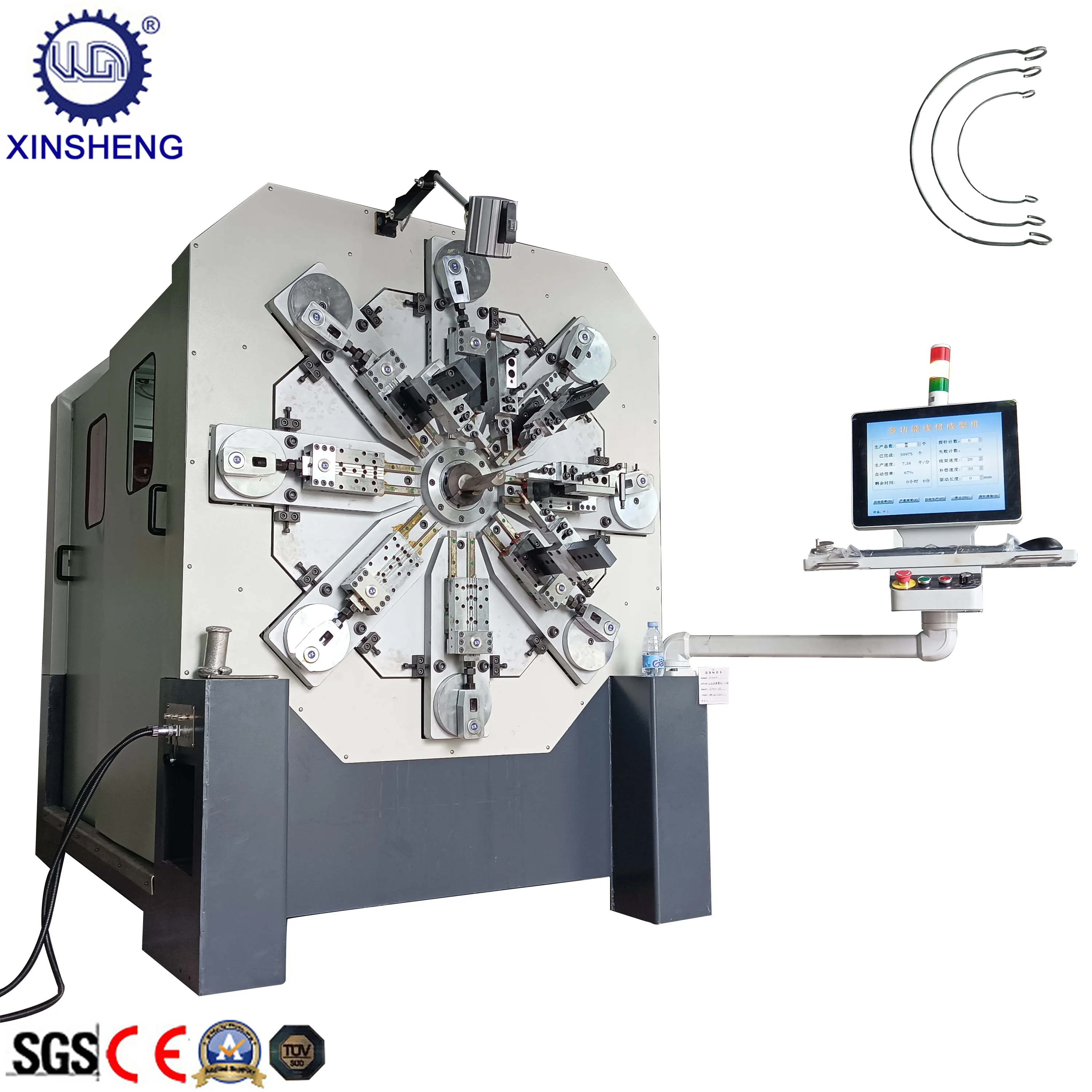

CNC Wire Bending Machine for High-Precision Metal Forming GT40-12R

Camless design, Panasonic Servo, Roster reducer, wire rotation, bilingual interface, upgradable tech for advanced CNC solutions.

  • Overview
  • Recommended Products
Products Description
product cnc wire bending machine for high precision metal forming gt40 12r-0
Function and Features:
1.Adapt camless design, fast adjusting of machine, high precision and stable quality
2.Adopt Japan Panasonic Servo motor and Germany Roster reducer.
3.Wire rotation design , stable feeding and more convenient adjustment of machine
4.English and Chinese interface, easy operation , less experience required.
5.Whenupgrading the machine technology, it can solve technical difficulty which ordinary CNC wire bending machine or spring machine can not do.

Model
GT40-12R
Wire dia(mm)
Hard:1.2-4.0
Soft: 2.0-6.0
Max. wire feeding value(mm)
10000
Min. wire feeding value(mm)
0.01
Max. wire feeding speed (m/min)
80
Max. wire feeding length
Unlimited
Axis number
12
Total output power of servo motors
21.8KW
Program storage(plus)
3000
Compressor air pressure (kg/cm)
5-6
Probe number
3
Packing Size L*W*H(cm)
Machine275*160*192
The feeding tray145*145*130
The feeding tray
400KG
Net weight(kg)
4100
CNC Wire Bending Machine for High-Precision Metal Forming GT40-12R manufactureCNC Wire Bending Machine for High-Precision Metal Forming GT40-12R factoryCNC Wire Bending Machine for High-Precision Metal Forming GT40-12R factoryCNC Wire Bending Machine for High-Precision Metal Forming GT40-12R factoryCNC Wire Bending Machine for High-Precision Metal Forming GT40-12R manufacture

Hot Products
CNC Wire Bending Machine for High-Precision Metal Forming GT40-12R supplier

Our Company
CNC Wire Bending Machine for High-Precision Metal Forming GT40-12R factory
CNC Wire Bending Machine for High-Precision Metal Forming GT40-12R details

Our Service
CNC Wire Bending Machine for High-Precision Metal Forming GT40-12R details

Pre-Sales Service
Inquiry and consulting support.
Sample testing support.
View our Factory.

After-Sales Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
CNC Wire Bending Machine for High-Precision Metal Forming GT40-12R supplier

Certifications
CNC Wire Bending Machine for High-Precision Metal Forming GT40-12R supplier
Packing & Delivery
CNC Wire Bending Machine for High-Precision Metal Forming GT40-12R factory

Exhibition
CNC Wire Bending Machine for High-Precision Metal Forming GT40-12R supplier

FAQ
1. How was about your machine quality?
1).We have been manufacturing bending machinery for over 10 years, all of our machines with experienced fabrication and good assembling.
2).Our factory are SGS, TUV inspected and machines are all CE certified.
2. If your machine got problems, how can we do that?
1).All of our machines are under one year guarantee period. and our CNC controlling system enjoy 3 years guarantee , everlasting technical support.
2).We have many distributor and local agent in your country, who can do on-site after-sale service. we can also dispatch our technician to your factory for big problem shooting in case of big problems.
3. How can we learn to operate your machine?
1).You can send people to our factory to get training of how to use machine before delivering machine. or we are requested to send technician to your factory to do commissioning and basic training.
2).After commissioning , if you still not very skillful of the operation, we can give you online camera video training.
3).Our sales team was 24 hours on-line for pre-sale, and after sale service. you can contact us at any time.
4. What is your payment term and Incoterm ?
1).We accept payment term as L/C and TT.
2).We accept Incoterm as Ex-works, FOB ,CNF and CIF.
5. What is your offer composition?
Our offer include machine ,decoiler ,mold or tools and Export wooden case packing
