 HOSE CLAMP BENDING MACHINE

HOSE CLAMP BENDING MACHINE

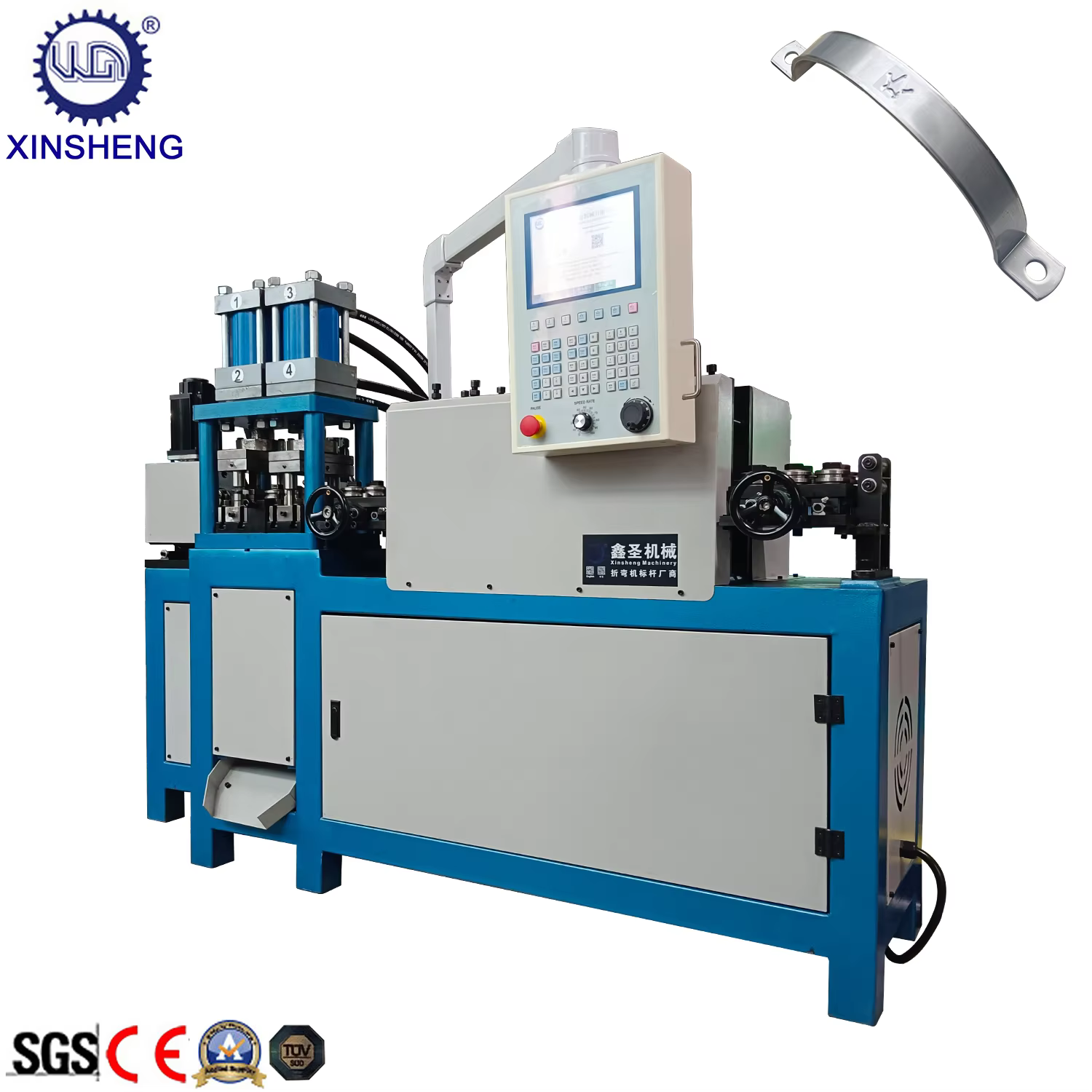

10mm CNC Hydraulic Flat strap Hose Clamp Punching Bending Making Machine

The machine isspeciallydesignedforproducing ofhose clamp withflat materials such as stainless steel/galvanized sheet/aluminum.

  • Overview
  • Recommended Products

Product Description

product 10mm cnc hydraulic flat strap hose clamp punching bending making machine-0

The machine isspeciallydesignedforproducing ofhose clamp withflat materials such as stainless steel/galvanized sheet/aluminum. One oil cylinder of our machine can act as one punch, and 10 actions of some machines are equivalent to the functions of 10 punches. The computer combines multiple oil cylinders tobending complexproducts.

We have made customized flat products with a maximum width of 50MM and a maximum thickness of 10MM. The equipment can complete fully automatic numerical control: feeding - straightening - flattening - cutting - punching -engraving- multi action bending - trimming - finished product. It canbend complex partsthat the punch cannot complete, and the bending precision is 0.2MM.



Technical Paramter

Model XS-100PC-3A
Size(W*T)mm MAX 100*10
Feeding length 100~900mm
Production efficiency 10-15pcs/min
Servo power 5.5kw*2(pcs)+1.5kw
Motor power of Hydraulic 5.5KW*2



Packaging & Shipping

Pack 1A.jpg

Poly wood case packing, we can deliver out product by rail way or by sea.



Our Services

1. Recommend correct equiipment to customer for standard products.

2. Design and produce non-standard equipments based on buyer's unique requirement.

3. We provide detailed video setup to guid the installment for obroad buyers, can also send engineer to settle problems on site.



Company Information

Dongguan Xinsheng Hardware Machinery Co.,Ltdwasestablished in March,2009. We are concentrating on manufacturing wire bending machinery . Our product includes: CNC bending machine, Hydraulic CNC bending machine, Mechanical bending machine.With over 14 years of experience and profound know-hows, we can provide various wire bending solutions to customers all over the world.




Trade Show

_07


FAQ

1.Can we customed bending equipment with welding function?

Yes, you can. We have been providing tailored serive since 2009.

2. Which brand of main parts do you use?

We adopt branded main parts. Such Pasasonic's servo motor, Delta's frequency converter, Ashun's hidraulic cylinder.

3. How do you guide the installation for broad customers?

We provide detailed video setting up guide to buyer via online video and USB drive shipped with equipment, which has been proven to be very effective. On site instruction is also available, but it need extra payment.

4. How is your quality guarantee?

1 year for main parts such as motor, control system, but not for easy worn products such as knife. Our machine always can be used for 10 years at least.
